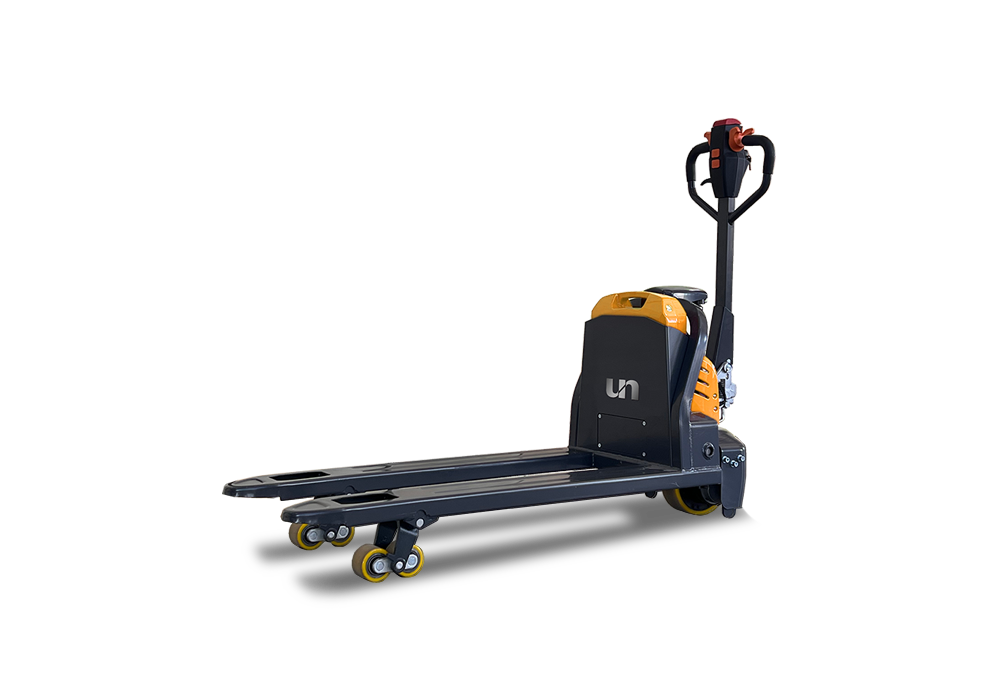

Electric Pallet Truck SL15/18/20L3
The vehicle features a simple, compact, and reliable design, offering flexible operation and easy handling. With a small turning radius and lightweight structure, it is suitable for use in freight elevators. Low noise operation combined with high performance ensures efficient and comfortable use.
DETALLES DEL PRODUCTO
MAIN SPECIFICATIONS
|
Model |
SL15L3 |
SL18L3 |
SL20L3 |
|||||||||||
|
Rated Load Capacity |
Q(t) |
1.5 |
1.5 |
2.0 |
||||||||||
|
Load Centre |
c (mm) |
600 |
600 |
600 |
||||||||||
|
Wheelbase |
y (mm) |
1243 |
1243 |
1243 |
||||||||||
|
Total Weight（without battery） |
kg |
142 |
142 |
146 |
||||||||||
|
Height of Mast（lowered） |
h13 (mm) |
85 |
85 |
85 |
||||||||||
|
Overall length |
l1 (mm) |
1603 |
1603 |
1603 |
||||||||||
|
Overall Width |
b1/ b2 (mm) |
550/685 |
550/685 |
550/685 |
||||||||||
|
Min Turning Radius |
Wa (mm) |
1398 |
1398 |
1398 |
||||||||||
|
Travel Speed（Full Load / No Load） |
(km/h) |
4.2/4.5 |
4.2/4.5 |
4.2/4.5 |
||||||||||
|
Max.Gradeability（Full Load / No Load） |
(%) |
5/10 |
5/10 |
5/10 |
||||||||||
|
Battery |
(V/Ah) |
24/20 |
24/30 |
24/40 |
24/60 |
24/20 |
24/30 |
24/40 |
24/60 |
48/20 |
48/20 |
48/30 |
48/30 |
|
CARACTERÍSTICAS DEL PRODUCTO
-
High Performance
- High-power MOSFET driver. High-frequency, efficient, quiet, stepless speed regulation and reverse braking function.
- Advanced vertical AC drive system, motor can get more energy and greater brake torque, more powerful and efficient, accelerated performance is better.
- The whole series is configured with a special gantry steel, great plasticity, strong anti-bending ability; high structural stability.
- The whole series equipped with a standard steering system, the assisted power is responsive and the handle is easy to operate.
- The number of components required for the AC motor is little. There are no fragile components that need to be replaced regularly, almost no maintenance, it is more efficient and durable.
- Equipped with side pull battery configuration, battery replacement is faster and more convenient, easier for continuous operation, greatly improve work efficiency.
- The standard configuration is lifting limit, when the fork rises to the top, the system automatically cuts off the uplink power supply, smooth parking, effective prevent the occurrence of “roof falling” accidents.
